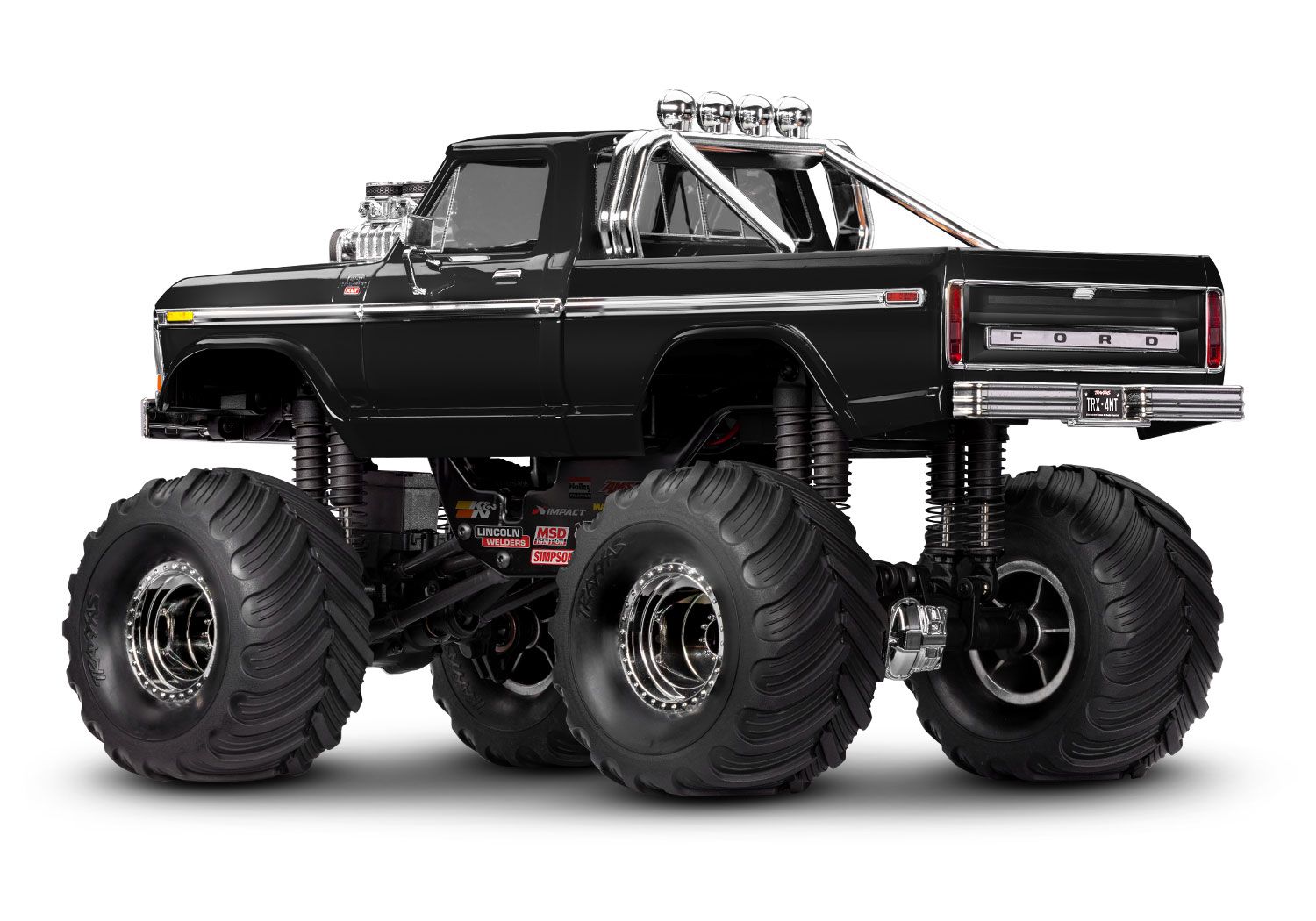

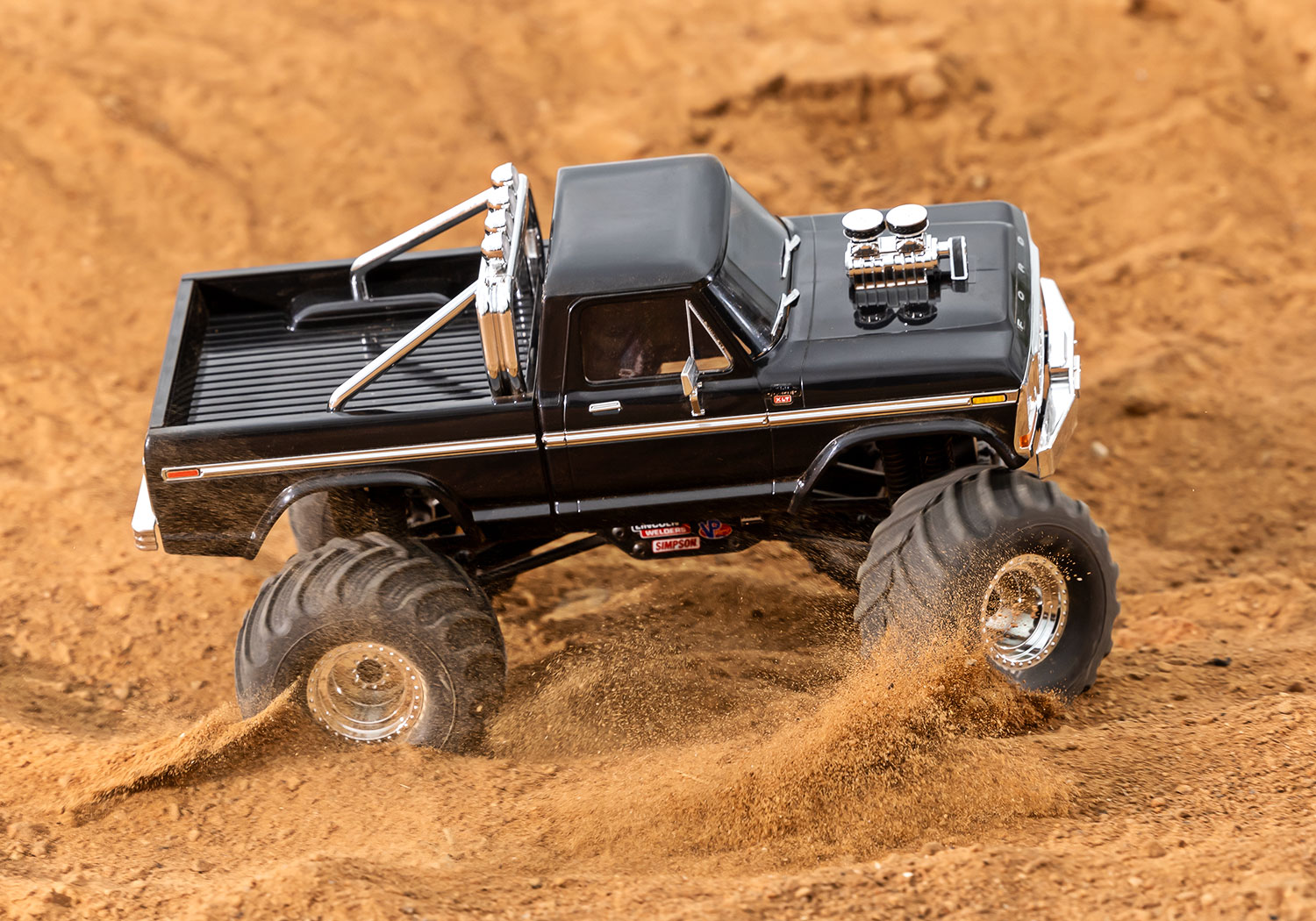

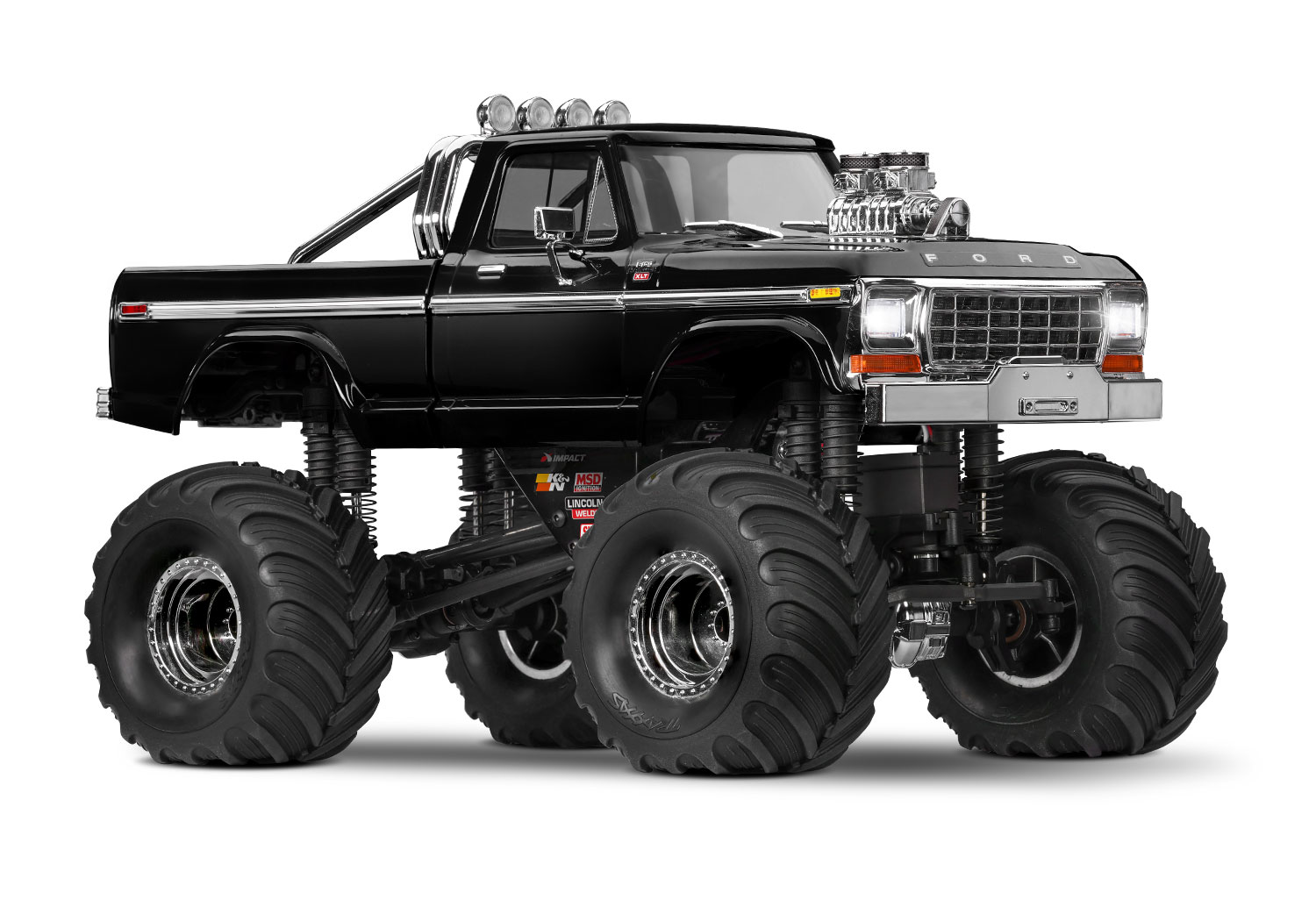

TRX-4MT 1/18 F150 MONSTER TRUCK Black

MOTOR SPECS

Motor Name:	Titan 180
Motor Type:	87-turn brushed motor
Motor Weight:	1.16 ounces (33 g)
Motor Length:	1.66 inches (42 mm)
Motor Diameter:	.81 inches (21 mm)

ESC SPECS

ESC Name:	ECM 2.5™
ESC Type:	Brushed
ESC Case Size:	1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm)
ESC Weight:	.92 ounces ( 26 g)

•  ABS Body
• • Ford^® F-150^® licensed monster truck body
    • Molded-in color won’t chip or flake
    • Chrome engine detail, bumpers, roll bar, side mirrors, door handles, & wipers
    • LED headlights
  • Heavy-duty latching clips
    • Hold tightly on the trail
    • Release in just seconds
• ECM-2.5™ Electronic Control Module
  • Incorporates ESC, receiver, and LED controller in one chassis
  • Fully waterproof for all-weather fun
  • Three drive profiles
    • Sport Mode — forward / brake / reverse
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set^® one-button setup
  • Built-in Pro Scale^® LED functionality
  • Two stage low voltage protection (LVD)
  • Motor overload protection
• TQ™ 2.4 GHz Transmitter
  • Full-size 2-channel transmitter
  • All-day comfort with precise long-range control
• Titan^® 180 87-Turn Brushed Motor
  • Fixed gear mesh doesn’t require adjustment
  • Forward mounting position for improved crawling dynamics
• Extended Heavy-Duty Steel Ladder Frame
  • Deep C-channel design
  • Extended center side plates for maximum rigidity
  • Rails run from bumper to bumper
• Drivetrain
  • Full-time shaft-driven 4-wheel drive
  • Solid steel axles
  • Spool-equipped front and rear axles
  • Heavy-duty CV center driveshafts
• Secure Battery Strap
  • Wide rubber strap secures battery in place
• Optional Transmission Ratios (sold separately)
  • Optional Low Range or Speed Gearing transmissions
  • Modular design swaps out in minutes
• Steering
  • Heavy-duty 2065R steering servo
    • Full metal gears
  • Superior 45° steering angle
  • Direct steering (no servo saver)
• Long Arm Lift Kit
  • Revised shock towers
  • Extended 4-link suspension
  • Heavy-duty rod ends
• Eight GTM™ Shocks (4 oil filled, 4 auxillary)
  • Provides smooth controlled damping
  • Realistic driving body movements
  • Adjustable pre-load spacers
  • Easily refreshed with available rebuild kits
• Wheels and Tires
  • Chrome deep-dish monster truck wheels
    • 7 mm hex
  • Pre-mounted Terra Groove monster truck tires
    • Authentic shaved look
    • Sticky rubber compound
• Battery and Charger Included
  • High-capacity 2-cell LiPo battery with iD^®
    • 7.4 volts
    • 750 mAh for over an hour of run time
  • 2-amp USB-powered charger
  • iD^® technology for faster, safer charging
• Low-Maintenance Self-Lubricating Bushings
• Durable Hex hardware

What’s In The Box:

• TRX-4MT Monster Truck
• Licensed ABS hard body
• Titan^® 180 87-turn motor
• ECM-2.5 Electronic Control Module
• TQ transmitter
• 7.4 volt 750 mAh 2-cell LiPo battery
• 2-amp USB fast charger with iD^®
• High quality maintenance tools

What You’ll Need:

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter
